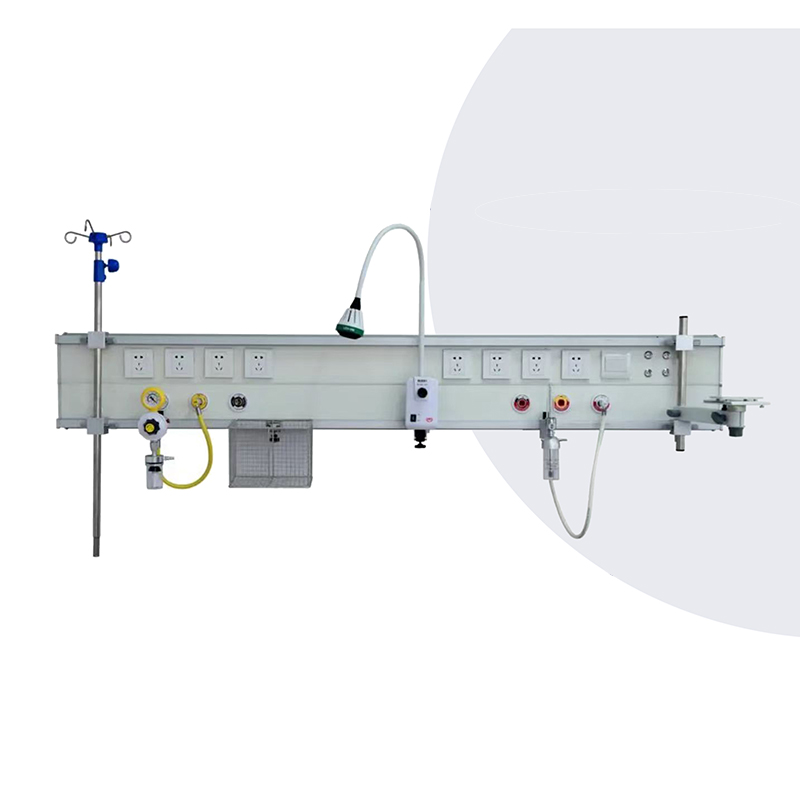

Medical console is mainly used in hospital wards, which is composed of four parts: the back wall, the upper side panel, the lower side panel and the middle panel, and the two ends are closed by PVC. It is usually fixed on the wall of the hospital bed in the form of strips. It is an indispensable gas terminal control device of the hospital oxygen supply and negative pressure suction system, and has played an active role in the treatment and rescue of patients. This ICU ward medical console includes oxygen terminal, vacuum negative pressure suction terminal, compressed gas terminal, intelligent call system extension, power socket, emergency lighting, suspension bracket, RJ-45 socket, but also equipped with an autoclavable oxygen flow meter with humidifier, infusion rack.
Technical parameters and performance:
1. Working power supply: AC 220V± 10%, 50/60Hz;
2. Console total length: 2 m;

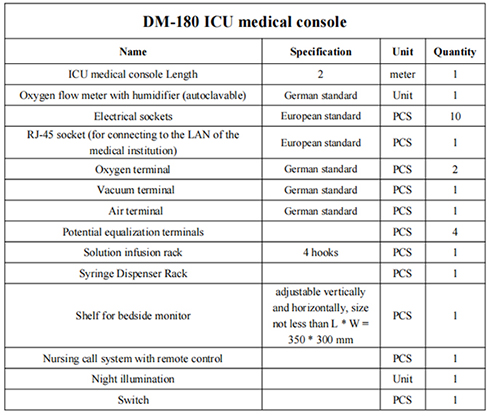

3. Configuration
4. The main material is made of high quality aluminum alloy material, surface electrophoresis treatment. Wear-resistant, easy to clean, can be any combination;
5. Groove style: the structure is three-chamber, gas and electricity are separated, strong and weak electricity are separated, the gas channel is separated from the wire channel, safe and reliable, and the gas pipeline has been installed and maintained by 100% air tightness test.
6. Multi-functional use, can be configured terminal gas outlet, electrical socket, monitor/monitor bracket, network terminals, bedside lamp, nursing communication system.
7. Save space, easy to install on the bed head.
8. According to the needs of users, any form of medical terminal gas outlet can be installed. (British standard, German standard, American standard and domestic gas terminal socket)
9. The color of the equipment with the panel and the side panel can be customized according to the choice of the hospital and the color of the ward wall.
7*24小時免費咨詢熱線
131-8881-9888Medical console is mainly used in hospital wards, which is composed of four parts: the back wall, the upper side panel, the lower side panel and the middle panel, and the two ends are closed by PVC. It is usually fixed on the wall of the hospital bed in the form of strips. It is an indispensable gas terminal control device of the hospital oxygen supply and negative pressure suction system, and has played an active role in the treatment and rescue of patients. This ICU ward medical console includes oxygen terminal, vacuum negative pressure suction terminal, compressed gas terminal, intelligent call system extension, power socket, emergency lighting, suspension bracket, RJ-45 socket, but also equipped with an autoclavable oxygen flow meter with humidifier, infusion rack.
Technical parameters and performance:
1. Working power supply: AC 220V± 10%, 50/60Hz;
2. Console total length: 2 m;
3. Configuration
4. The main material is made of high quality aluminum alloy material, surface electrophoresis treatment. Wear-resistant, easy to clean, can be any combination;
5. Groove style: the structure is three-chamber, gas and electricity are separated, strong and weak electricity are separated, the gas channel is separated from the wire channel, safe and reliable, and the gas pipeline has been installed and maintained by 100% air tightness test.
6. Multi-functional use, can be configured terminal gas outlet, electrical socket, monitor/monitor bracket, network terminals, bedside lamp, nursing communication system.
7. Save space, easy to install on the bed head.
8. According to the needs of users, any form of medical terminal gas outlet can be installed. (British standard, German standard, American standard and domestic gas terminal socket)
9. The color of the equipment with the panel and the side panel can be customized according to the choice of the hospital and the color of the ward wall.
